Android自定义Chronometer实现短信验证码秒表倒计时功能

当手机应用程序安装后初始化时,为了提高用户体验,通常会以倒计时的形式给用户一定的提示,本文是中国E盟技术频道小编介绍的Android自定义Chronometer实现短信验证码秒表倒计时功能,一起来看看吧!

一、自定义ChronometerView 继续自TextView

主要原理:先设置一个基准倒计时时间mBaseSeconds,内置handler 每隔1s发送一个空消息,mRemainSeconds--,同时刷新界面视图,回调给外部调用者,只到为零。外部调用者可通过start()/pause()/stop()来控制计时器的工作状态。

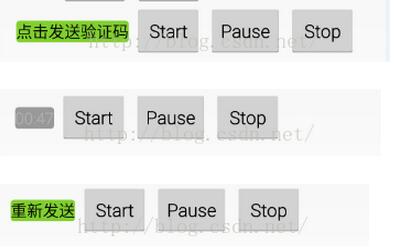

可以app中发送短信验证码的场景为例,做了一个很粗糙的界面,但功能都实现了。

/**
 * @name 倒计时器(类似妙表倒数计时,支持暂停、停止、重新开始)
 * @author Fanjb
 * @date 2015年11月6日
 */
public class ChronometerView extends TextView {

 /**
 * A callback that notifies when the chronometer has decremented on its own.
 *
 * @author Fanjb
 */
 public interface OnTickChangeListener {

 /**
  * remain seconds changed
  *
  * @param view
  * @param remainSeconds
  */
 public void onTickChanged(ChronometerView view, long remainSeconds);
 }

 private long mBase;
 private long mRemainSeconds;
 private boolean mStarted;
 private boolean mReStart;
 private boolean mVisible;
 private boolean mIsEnable;

 private OnTickChangeListener mTickListener;

 public ChronometerView(Context context) {
 this(context, null);
 }

 public ChronometerView(Context context, AttributeSet attrs) {
 super(context, attrs, 0);
 }

 public ChronometerView(Context context, AttributeSet attrs, int defStyleAttr) {
 super(context, attrs, defStyleAttr);
 updateText(mRemainSeconds);
 }

 @Override
 protected void onWindowVisibilityChanged(int visibility) {
 super.onWindowVisibilityChanged(visibility);
 mVisible = visibility == VISIBLE;
 updateStatus();
 }

 @Override
 protected void onDetachedFromWindow() {
 super.onDetachedFromWindow();
 mVisible = false;
 updateStatus();
 }

 /**
 * 启动计时器
 */
 public void start() {
 if (mReStart && !mStarted) {
  mRemainSeconds = mBase;
 }
 mStarted = true;
 updateStatus();
 }

 /**
 * 暂停计时器
 */
 public void pause() {
 if (mStarted) {
  mStarted = mReStart = false;
  updateStatus();
 }
 }

 /**
 * 停止计时器,再次调用 start()重新启动
 */
 public void stop() {
 mStarted = false;
 mReStart = true;
 updateStatus();
 updateText(mRemainSeconds = 0);
 dispatchTickListener();
 }

 /**
 * 刷新内部状态
 */
 private void updateStatus() {
 boolean isEnable = mVisible && mStarted;
 if (mIsEnable != isEnable) {
  if (isEnable) {
  mHandler.sendMessage(Message.obtain(mHandler, TICK_WHAT));
  } else {
  mHandler.removeMessages(TICK_WHAT);
  }
  mIsEnable = isEnable;
 }
 }

 private static final int TICK_WHAT = 1;

 private Handler mHandler = new Handler() {
 public void handleMessage(android.os.Message msg) {
  if (mRemainSeconds > 0) {
  updateText(--mRemainSeconds);
  dispatchTickListener();
  sendMessageDelayed(Message.obtain(this, TICK_WHAT), 1000);
  }
 }
 };

 private void updateText(long now) {
 String text = DateUtils.formatElapsedTime(now);
 setText(text);
 }

 /**
 * 在未启动状态下设置开始倒计时时间
 *
 * @param baseSeconds
 */
 public void setBaseSeconds(long baseSeconds) {
 if (baseSeconds > 0 && baseSeconds != mBase && !mStarted) {
  mBase = mRemainSeconds = baseSeconds;
  updateText(mRemainSeconds);
 }
 }

 /**
 * 剩余时间
 *
 * @return
 */
 public long getRemainSeconds() {
 return mRemainSeconds;
 }

 public void setOnTickChangeListener(OnTickChangeListener listener) {
 mTickListener = listener;
 }

 public OnTickChangeListener getTickListener() {
 return mTickListener;
 }

 private void dispatchTickListener() {
 if (mTickListener != null) {
  mTickListener.onTickChanged(this, getRemainSeconds());
 }
 }

 @Override
 public void onInitializeAccessibilityEvent(AccessibilityEvent event) {
 super.onInitializeAccessibilityEvent(event);
 event.setClassName(ChronometerView.class.getName());
 }

 @Override
 public void onInitializeAccessibilityNodeInfo(AccessibilityNodeInfo info) {
 super.onInitializeAccessibilityNodeInfo(info);
 info.setClassName(Chronometer.class.getName());
 }
}

二、xml 中没有加入自定义的控件属性,同TextView

<LinearLayout
 android:layout_width="wrap_content"
 android:layout_height="wrap_content"
 android:orientation="horizontal" >

 <com.freedoman.widgets.calendar.ChronometerView
  android:id="@+id/chronometer_view"
  android:layout_width="wrap_content"
  android:layout_height="wrap_content"
  android:layout_marginLeft="5dp"
  android:background="@drawable/chronometer_view_bg"
  android:enabled="true"
  android:text="00:00" />

 <Button
  android:id="@+id/start_chronometer_view_btn"
  android:layout_width="wrap_content"
  android:layout_height="wrap_content"
  android:layout_marginLeft="5dp"
  android:text="Start" />

 <Button
  android:id="@+id/pause_chronometer_view_btn"
  android:layout_width="wrap_content"
  android:layout_height="wrap_content"
  android:layout_marginLeft="5dp"
  android:text="Pause" />

 <Button
  android:id="@+id/stop_chronometer_view_btn"
  android:layout_width="wrap_content"
  android:layout_height="wrap_content"
  android:layout_marginLeft="5dp"
  android:text="Stop" />
 </LinearLayout>

三、在Activity中做一个简单的测试(可以发送短信验证码的实际应用场景为例)

public class ChronometerActivity extends Activity {

 private ChronometerView mChronometerView;

 @Override
 protected void onCreate(Bundle savedInstanceState) {
 super.onCreate(savedInstanceState);
 setContentView(R.layout.activity_clock);

 // 自定义计时器
 if (mChronometerView == null) {
  mChronometerView = (ChronometerView) findViewById(R.id.chronometer_view);
  mChronometerView.setBaseSeconds(60);
  mChronometerView.setOnTickChangeListener(new OnTickChangeListener() {
  @Override
  public void onTickChanged(ChronometerView view, long curTimeMills) {
   System.out.println(curTimeMills);
   view.setEnabled(curTimeMills == 0 || curTimeMills == 60);
   if (curTimeMills == 0) {
   mChronometerView.setText("重新发送");
   }
  }
  });
  mChronometerView.setText("点击发送验证码");
 }
 findViewById(R.id.start_chronometer_view_btn).setOnClickListener(mClickListener);
 findViewById(R.id.pause_chronometer_view_btn).setOnClickListener(mClickListener);
 findViewById(R.id.stop_chronometer_view_btn).setOnClickListener(mClickListener);
 }

 private View.OnClickListener mClickListener = new OnClickListener() {

 @Override
 public void onClick(View v) {
  switch (v.getId()) {

  case R.id.start_chronometer_view_btn:
  if (mChronometerView != null) {
   mChronometerView.start();
  }
  break;

  case R.id.pause_chronometer_view_btn:
  if (mChronometerView != null) {
   mChronometerView.pause();
  }
  break;

  case R.id.stop_chronometer_view_btn:
  if (mChronometerView != null) {
   mChronometerView.stop();
  }
  break;
  }
 }
 };
}

上文是中国E盟技术频道小编介绍的Android自定义Chronometer实现短信验证码秒表倒计时功能的全部内容,大家学习到了多少呢?中国E盟技术频道小编每天都会为大家推荐值得大家学习的知识,继续关注我们吧!
